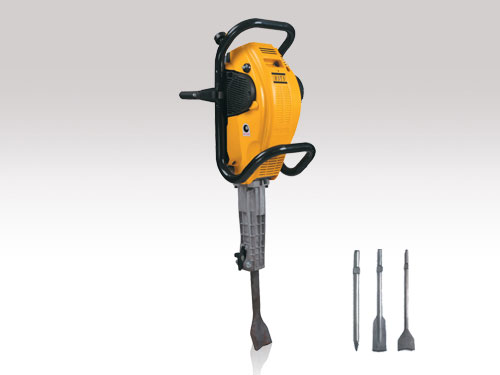

Product Name:ND-40II

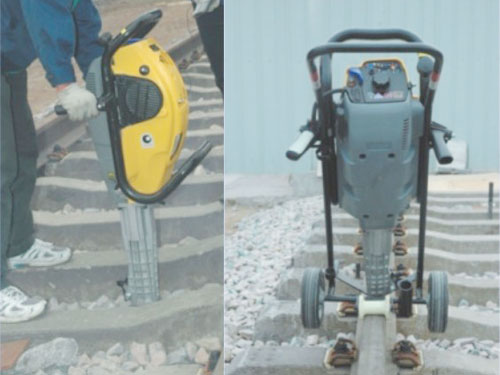

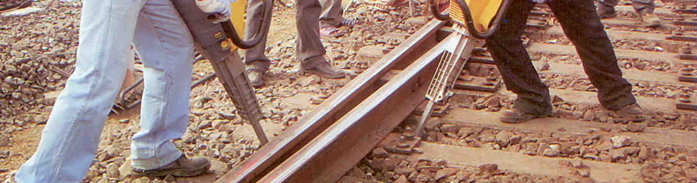

- ND-40II is specially designed for tie tamping.Its portability and flesibility eliminate traffic disruptions caused from local ballest compunction.
- For maximum comfort,the Hand and Arm Protection System(HAPS)achieves a very low vibration level.
- For optimal tie tamping and other maintenance jobs,the ND-40II is right on track.
- Specially developed for tie tamping
Impact energy of 45 Joule
Unique vibration dampening

Model

ND-40II

Impact Energy(J)

45

Power(kw/r/min)

2.0/6500

Gross Weight(kg)

40

Impact Number(Hz)

12-25

Working rotating Speed(r/min)

6000

Net Weight(kg)

26

Package dimension(mm)

950x450x450
