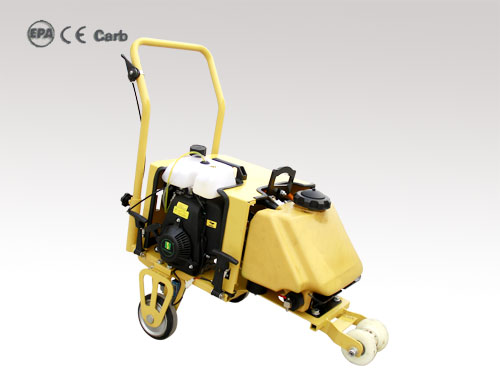

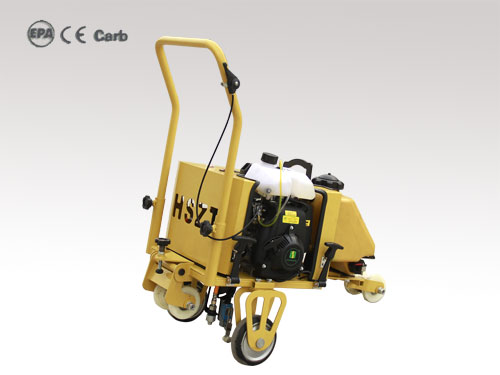

Product Name:Railway Bolt Lubrication

1、           Main Feature

Improve the level of mechanization of maintenance and will play a very good role in promoting daily maintenance of rail parts. Not only working efficiency greatly improved, greatly reducing the labor intensity of the operator, but also save spending of oil, no pollution to the ballast, meet current energy saving and environmental protection requirements;

The hydraulic pump powered by gasoline engine to work forcefully and conveniently. Could Substitute for the artificial handle operation, effect is more equality, improve work efficiency 6 times, reduce cost 3 times, anti-rust time up to more than 3 months; Compact and reasonable structure, beautiful appearance, easy operation and simple operation Safe and convenient to use

2Application

Application in railway line laying of various types of concrete sleeper bolts oiling maintenance operations, especially can be used in the absence of external connected to the power supply, without external power pneumatic occasions to track bolts for oiling and maintenance;

3Operation Principle

Gasoline engine driven hydraulic pump, anticorrosive oil mixture is scattered by the atomization spray evenly to the sleepers stand bolt of oiling operation.

4Technical Data:

Name

Railway Bolt Lubrication machine

Engine

Engine Model

142F

Engine Type

One cylinder, air cool, 4 stroke

displacement   ml

49

power kW /r/min

1.2/6800

consumption g/kW·h

≤480

Net weight     kg

≤45

Working efficiency pcs/min

240

Idle speed  r/min

2500±150

Working speed  r/min

4500±200

Fuel tank L

1.2

Oil vs grease Rate

2:1(2 sprayers)

Lubrication tank  L

10

Noise dB

≦100

size mm

950×500×900

Packing size

870x560x735
